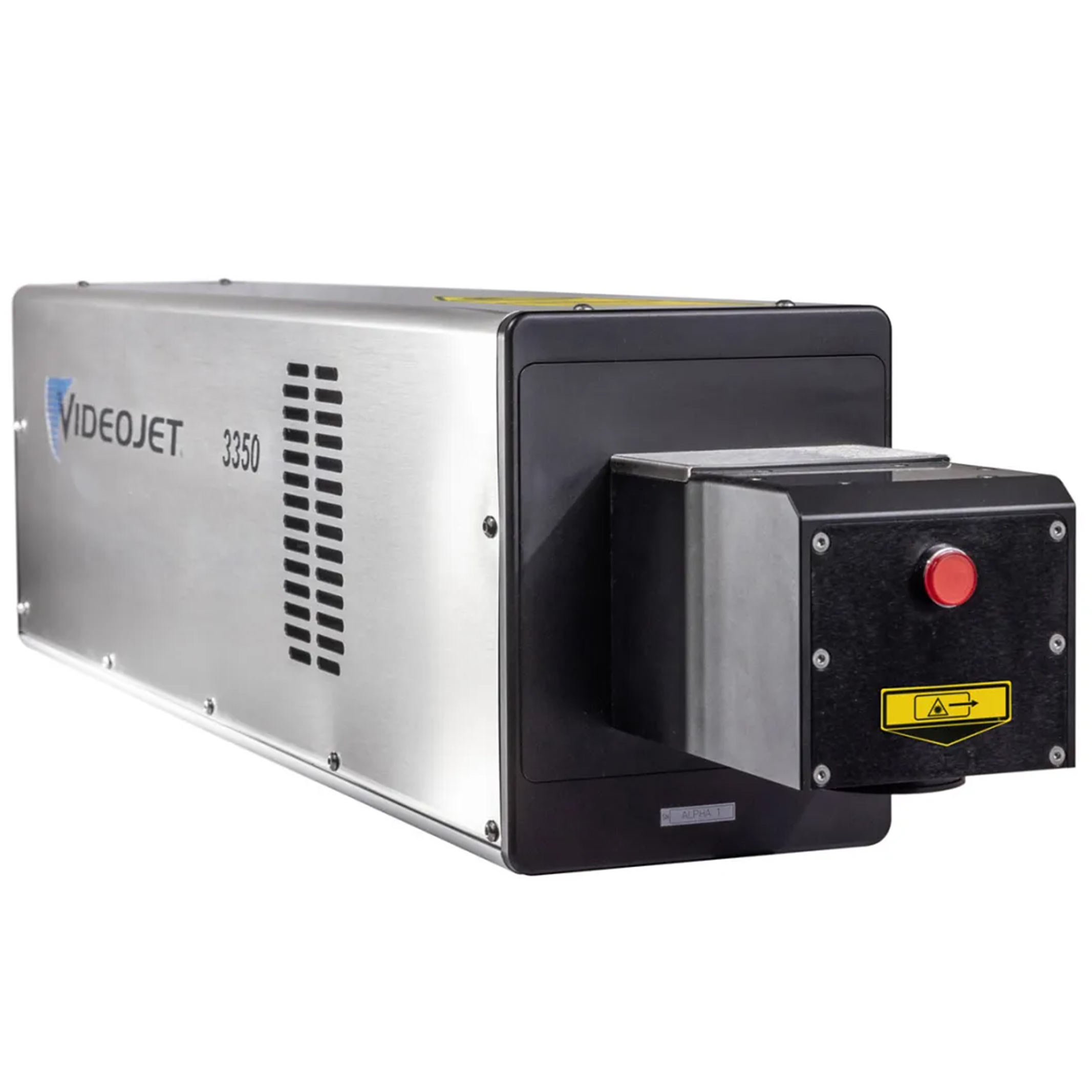

Videojet 3350

The 3350 is a connected solution with next-level flexibility, designed for seamless automated product changeovers

With unparalleled digitally-enabled capabilities, this 30-watt CO2 laser is the ultimate solution for marking complex and high-quality codes at lightning-fast speeds in a range of industries including food, beverage, cosmetics, pharmaceutical, and extrusion.
It allows for virtually unlimited font, code, and graphic options and boasts impressive line speeds of up to 900 m/min.
An advanced 3350 Smart Focus model not only offers all the features of the standard 3350 but also caters to the growing demand for automation and flexibility.
Equipped with cutting-edge automatic and dynamic marking capabilities, the 3350 Smart Focus allows for seamless product changeovers without any manual intervention, thereby supporting your journey towards Industry 4.0.

Description

Specs

Specification	Value
Laser Tube	CO₂
Maximum Power	30W
Laser Cooling	Air Cooled
Maximum Print Speed	2000 characters/sec
Maximum Line Speed	900 m/min (2,940 ft/min)
Environmental Protection	IP54, 65
Beam Output	Steered Beam
Laser Source Expected Life	45,000 hours
Laser Wavelength Options	10.6 μm, 10.2 μm, 9.3 μm
Focal Distance Options	64 mm (2.50 in) – 600 mm (23.62 in)
Maximum Mark Window	601 x 440 mm (23.66 x 17.32 in)
Standard I/O Connectivity	Internal Terminal Connections
Optional User Interface	TCS+ / Smart Graph on PC / CLARITY^TM Laser Controller
Umbilical	Detachable , 3 lengths
Plant Air Used	No
Certifications/Approvals	CE, TÜV/NRTL, FCC, KC, BIS Compliance (no certification required): ROHS, CDRH/FDA

The 3350 series benefits:

High-speed marking capability prints up to 2,000 characters per second of text, bar codes, graphics, and other information
High-resolution marking head delivers high-quality and permanent codes to support product traceability and anti-counterfeiting
Variety of lenses deliver one of the largest marking areas while options like beam turning unit options simplify integration
Multiple marking heads and wavelengths provide the flexibility to code a wide range of materials such as plastics, wood, glass, ceramics, and coated metals
Up to 45,000 hours of laser source life expectancy offers extended operational life, reliable performance, and reduced cost of ownership
Air-cooled laser source helps reduce maintenance intervals and additional costs
Wi-Fi and cellular* connectivity capabilities offer advanced remote services to improve printer availability and OEE

The 3350 Smart Focus benefits:

Multi-level surface marking: Mark different-sized products in the same marking field with 2.5D technology, helping to save time and more easily manage complex marking
Auto-adjustable focal distance: Automatically adjust the focal distance after initial job setup without moving the laser system up and down, reducing errors and user intervention
Uniform flat field correction: Maintain exceptional print quality with a uniform spot-size marking across the entire field, with no degradation at the edge
Pilot beam focus finder: Validate if your laser is focused and positioned correctly, so you can speed up your setup time with the right working distance and right alignment
Flexible range and size mode: Effortlessly alternate between greater focal distance range or an expanded marking field size, allowing for the completion of a diverse array of jobs
