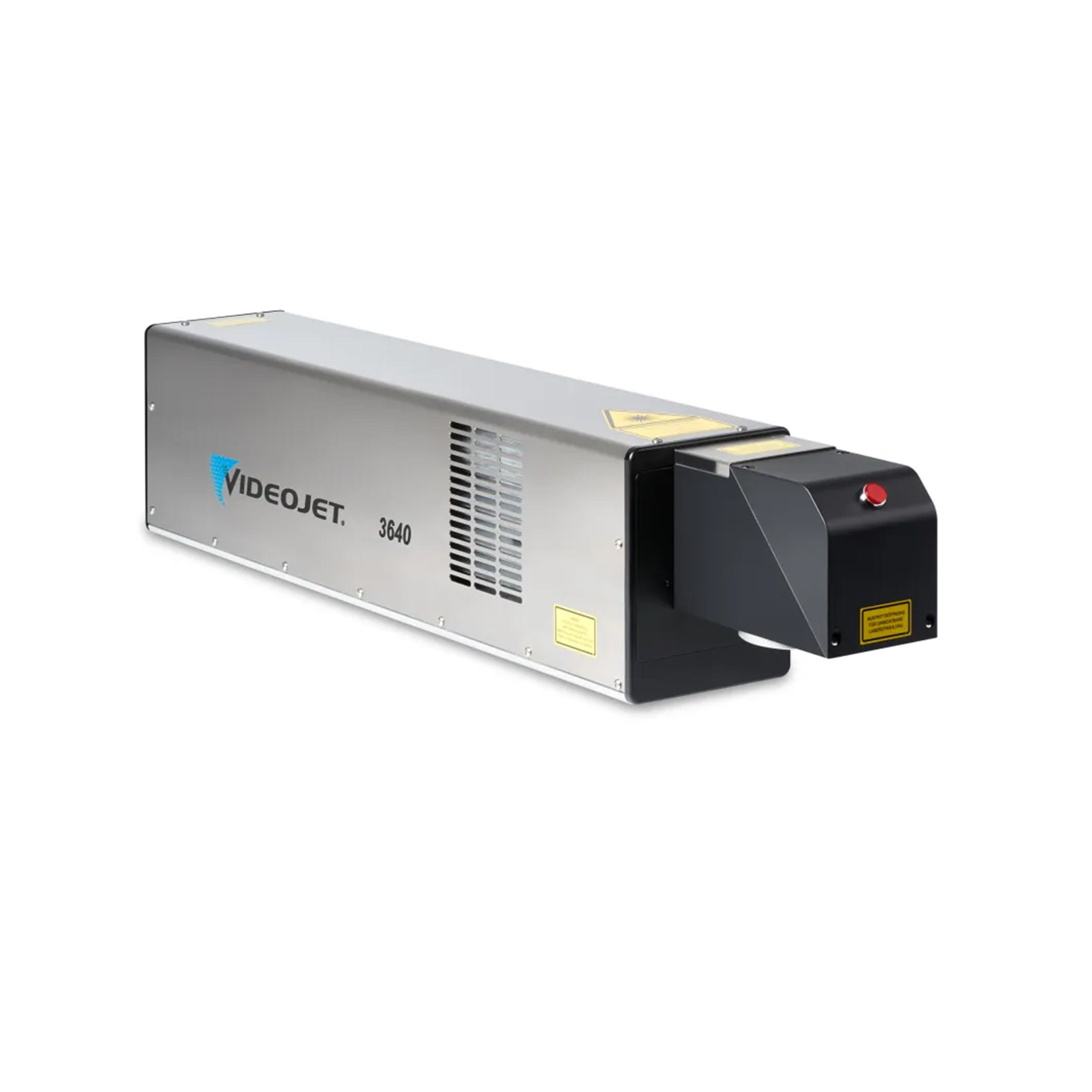

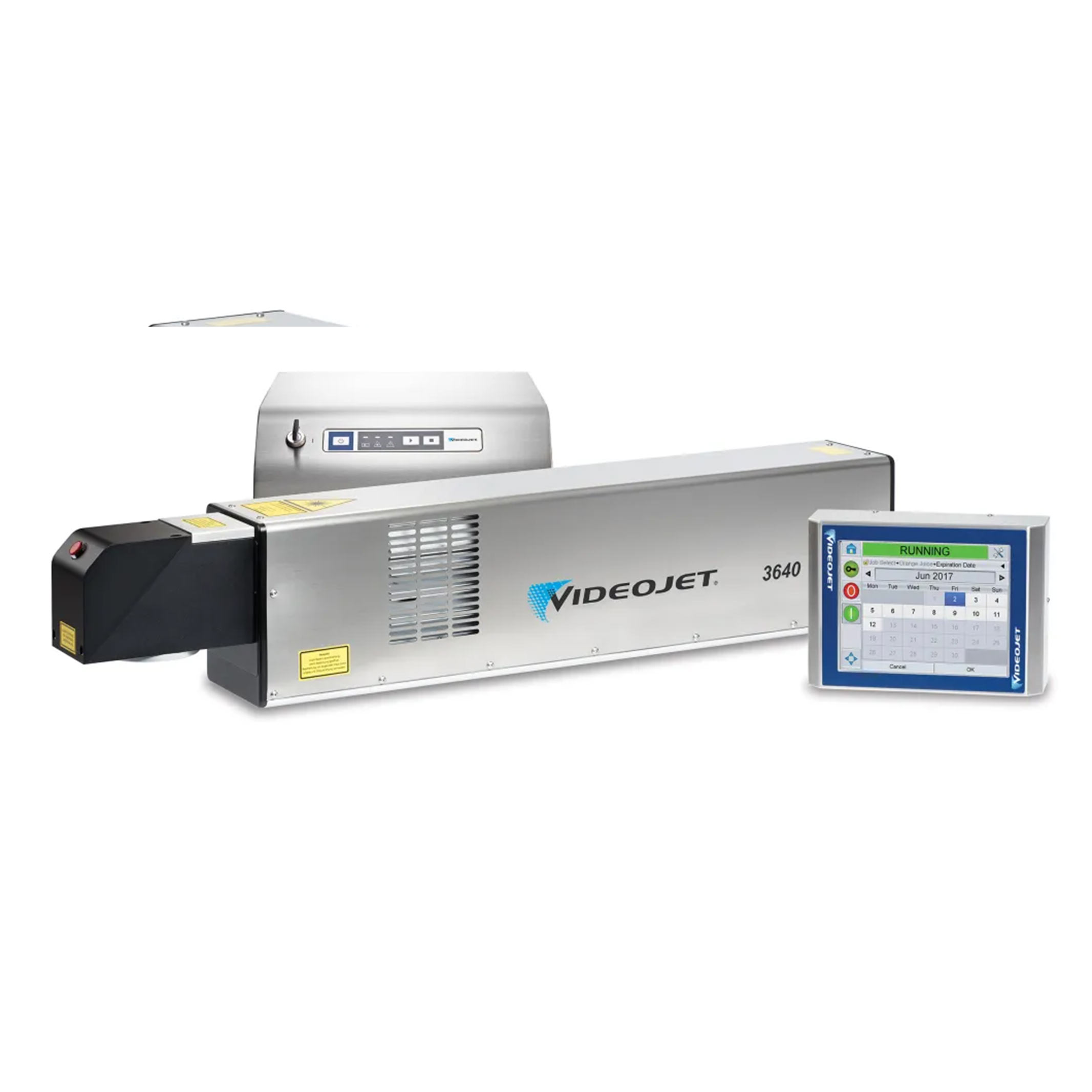

Videojet 3640
60-Watt CO2 Industrial Laser Marking System for Moderate to High-Speed Applications
The 3640 60-Watt CO2 laser marking machine is engineered to help address high-speed and high-volume applications in the pharmaceutical, tobacco and beverage markets. It is a compact laser system and has been designed to process complex codes at high speeds, with the industry’s widest marking field.
And with optional VideojetConnect™ Remote Service, your team can access Videojet experts to help improve productivity and troubleshoot potential issues in ways that other coding and marking solutions can’t.
Specs
| Value | |
| Laser Tube | CO2 |
| Maximum Power | 60W |
| Laser Machine Cooling | Air cooled |
| Maximum Print Speed | 2100 characters/sec |
| Maximum Line Speed | 15 m/sec (49 ft/sec) |
| Environmental Protection | IP54, IP65 |
| Beam Output | Steered Beam |
| Laser Source Expected Life | 45,000 hours |
| Laser Wavelength Options | 10.6 μm, 10.2 μm, 9.3 μm |
| Focal Distance Options | 64 mm (2.50 in) – 600 mm (23.62 in) |
| Maximum Mark Window | 601 x 440 mm (23.66 x 17.32 in) |
| Standard I/O Connectivity | Internal Terminal Connections |
| Standard User Interface | Handheld |
| Optional User Interface | PC, CLARiTY™ Laser Controller, TCS |
| Umbilical | Detachable , 3 lengths |
| Plant Air Used | No |
| Certifications/Approvals | CE, TÜV/NRTL, FCC Compliance (no certification required): ROHS, CDRH/FDA |
Benefits
Uptime Advantage helps keep productivity up and costs down:
- Increase throughput with 60 watts of power, optimized for high-speed and high-volume production lines
- Maximize printer availability with long-life, air-cooled laser sources that virtually eliminate maintenance intervals
- Optional VideojetConnect™ Remote Service allows access to Videojet experts to help improve productivity and troubleshoot potential issues
Industrial design engineered for high performance:
- Suitable for harsh environments, where dust and humidity are a challenge and where the system is regularly washed down
- Available with an ingress protection level of IP65
- Designed for 24/7 operation in beverage, food, pharmaceutical and tobacco line
Flexibility and simple usability comes as standard:
- Compact, highest-powered laser marking system in the industry
- Easily integrate the laser marking system even into production lines that have space limitations
- Largest marking field reduces the number of lasers that are required to cover multi-lane / wide web applications, reducing investment and running cost
